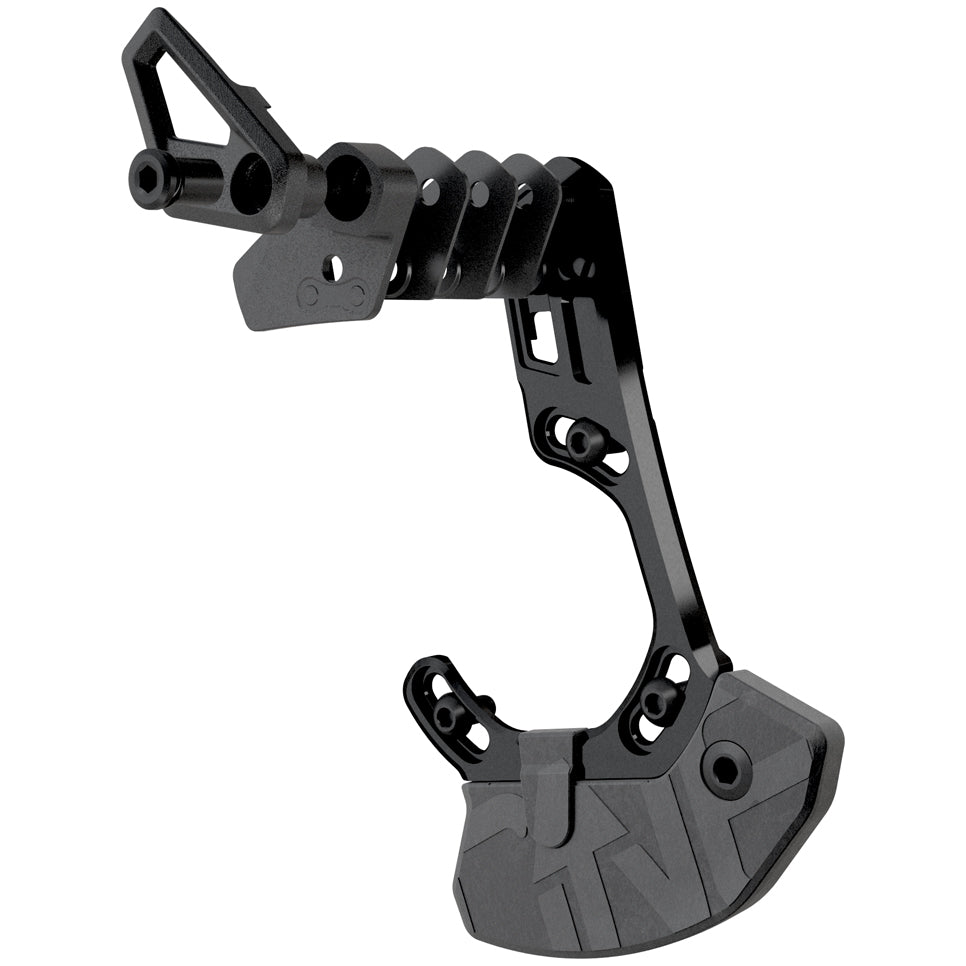

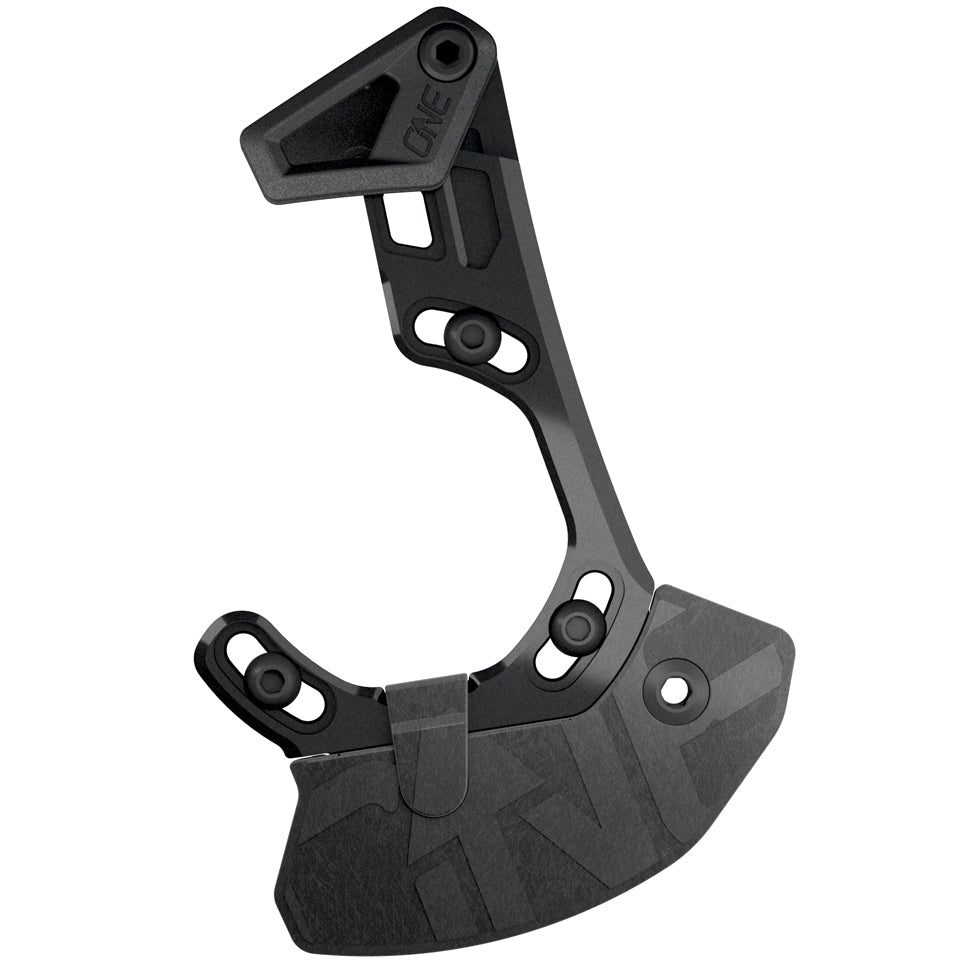

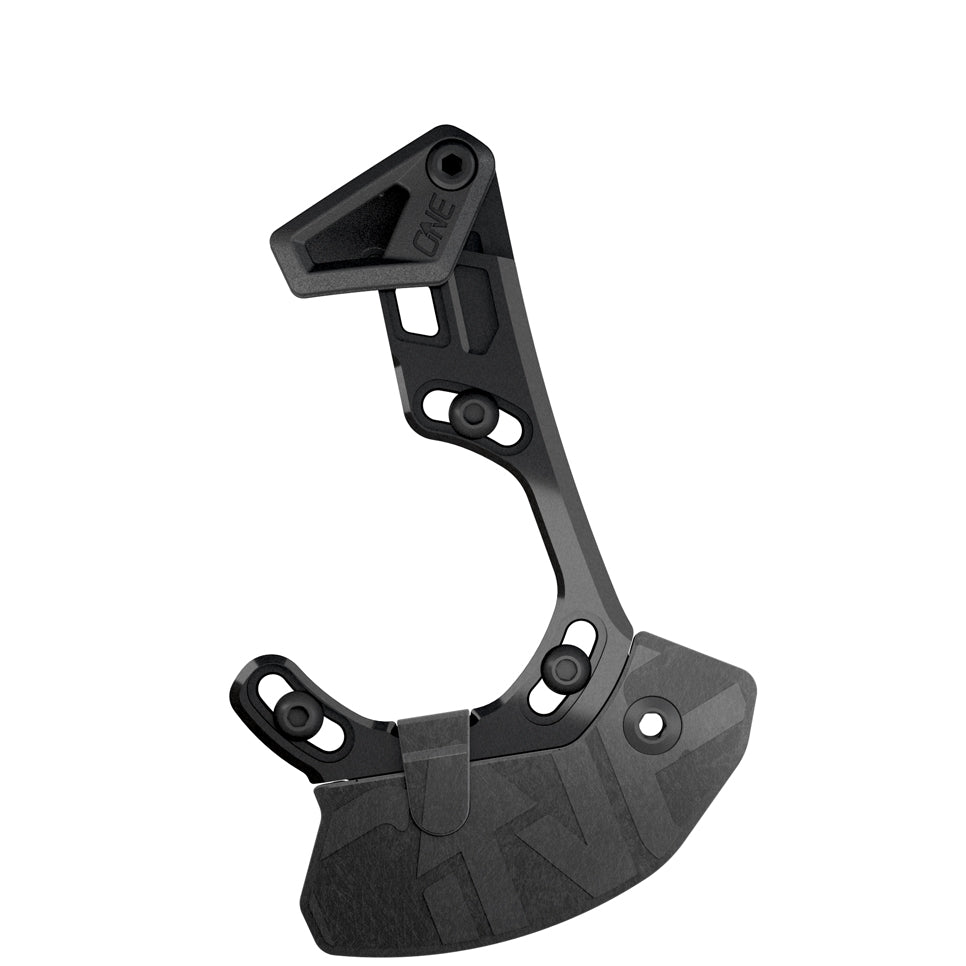

OneUp Components Bash Guide - ISCG05 - V2

Eliminate dropped chains forever with the new OneUp Components Bash Guide. The OneUp Bash Guide was developed with input from top EWS World racers and can be seen all over this years circuit. Reinforced Nylon bash guards and a back plate cut from 8mm thick 7075-T6 aluminum, ensure that the OneUp Bash Guide can handle the biggest hits, but at a weight of only 105g (34T) you may forget it’s even there.

The OneUp Bash Guide includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T.

FEATURES

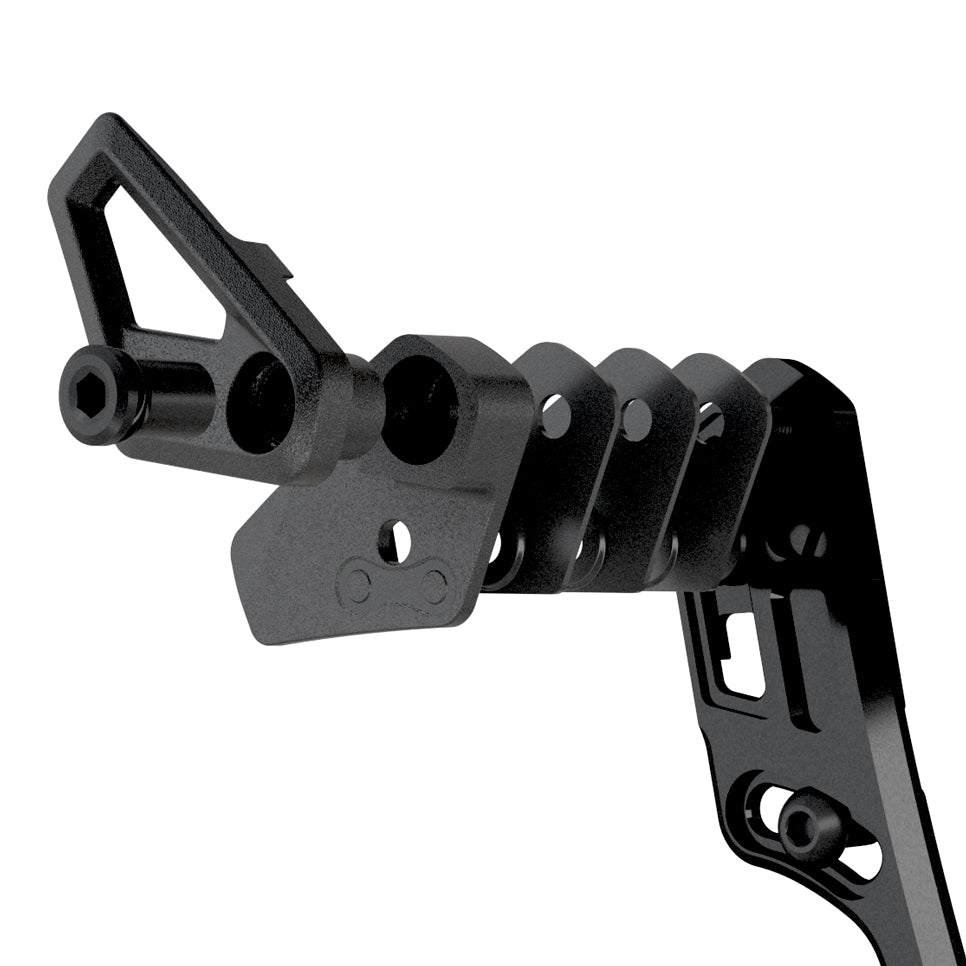

Tool less upper guide flip
Install without removing your crank
Single tool install and adjustment
Boost compatible
Oval Compatible
Black Stainless Steel hardware
Includes 3 bash plates (28-30T, 32-34T, 36T)
Patented US 10,053,188 Other Patents Pending
SPECS
Weight: 90g 28-30T, 105g 32-34T, 110g 36T
Capacity: 28-36T
Chainline: 7.5mm adjustment
Mount: ISCG05
Color: Black top guide piece included
Material: 7075 aluminum, top guide glass reinforced thermoplastic

COMPATIBILITY

Not compatible with E-bikes.
Not compatible with Gen 5 Trek Slash alloy & Fuel EX carbon & alloy frames.
Not compatible with Ibis Ripmo & Ripmo AF frames.
Not compatible with high pivot frames (Underbash is compatible)
Not compatible with V5 Commencal Meta SX frames
